Touch ECR/POS

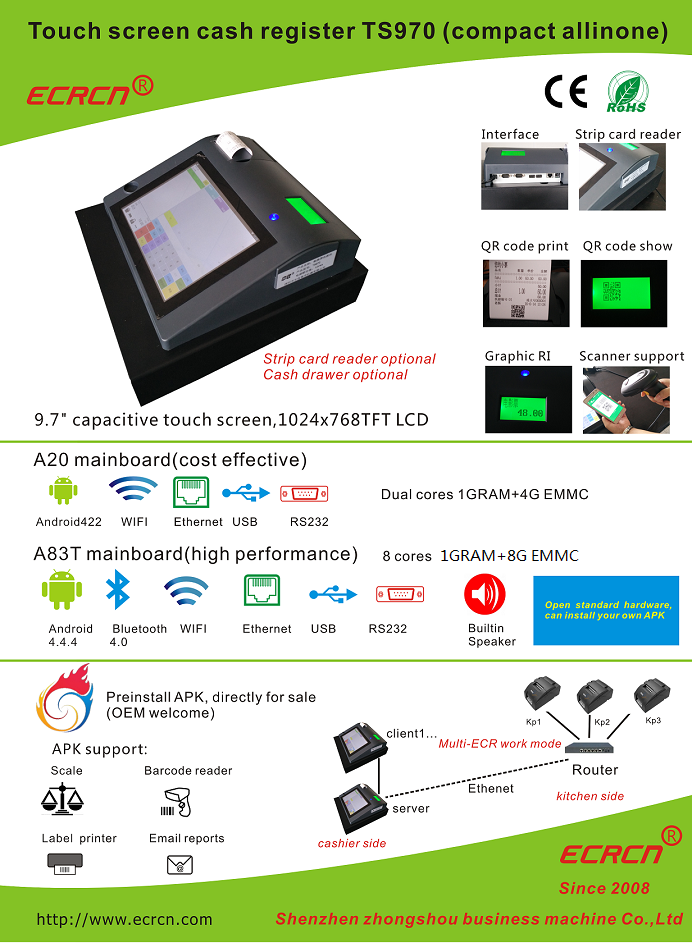

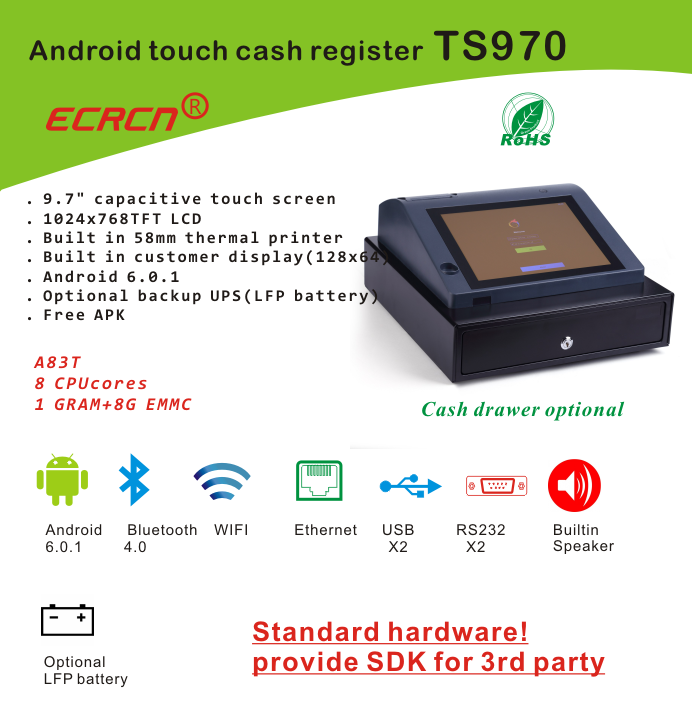

TS970 android POS

All in one design, easy to use, powerful features, cost effective.
Price: 0.00
Date: 2016-01-15
Hit: 1853

Content


ECRCN can provide according to customer requirement.IT IS FREE

*All in one design,easy to use,powerful features,cost effective
*Capactive touch screen
*3 lock positon compact cash drawer
*Industrial android main board
*Deep improved android system
*Preinstalled APK
*QR Code print ,QR  show



Embedded POS machines installed small ticket printer,customer display,card reader,cash drawer,truly integrated,so you have a machine in hand to solve all problems.


Built in Dual core ARM-CORTEX A7 CPU. 4G EMMC flash, 1G DDR3 RAM.
Android 4.22 OS.  TS1512 APK preinstalled.
9.7" TFT LCD with 1024*768. 4wire resistance touch screen.
3*USB host for USB printer, USB scanner, or USB disk.
2*RS232 for RS232 device, such as RS232 printer or scale.
1*RJ11 for cash drawer.
1*RJ45 for Ethernet.
Built-in WIFI.
Built-in Customer display (LCM128X64).
Built-in thermal printer(58mm).
Built-in battery for RTC.
Built -in magnetic card reader.
Fixed with cash drawer (330x360x90,4b5c/3B5C,3positons).

Display
Clerk 1024X768 9.7"TFT LCD
Rear LCM 128X64
Cash Drawer
RJ11 Build in
Main board
CPU ARM cortex-A7 dual core
RTC DS1302
Flash Memory 4G EMMC
RAM 1G DDR3
Interface
Interface 2RS232,3USB,1ETHENET
Capability PC, scanner, scale, kitchen printer
WIFI 802.11b/g/n Support
Power supply
Power supply DC 24V/2,5A adaptor
Rate AC85~245,50~60HZ
Power Approx. 36W
Temperature and humidity
Operation 0-50 ºC
Storage -40~60ºC
Humidity 20-90% (Relative)
Package
package 420x370x255mm carton box
Shock 1m drop on concrete surface
MTBF and standard
MTBF MTBF>5000hours
EMC Custom

APPENDIX
A. External receipt printers support:

B.External Kitchen printer support:

RS232: both 58mm and 80mm EPSON compatible
Ethernet:both 58mm and 80mm EPSON compatible

C.External Rear display support:


D.Scale support:
E.Scanner support
USB type: data stream: XXXXXXXXXXXXX-CR
