Touch ECR/POS



Touch POS TS1201

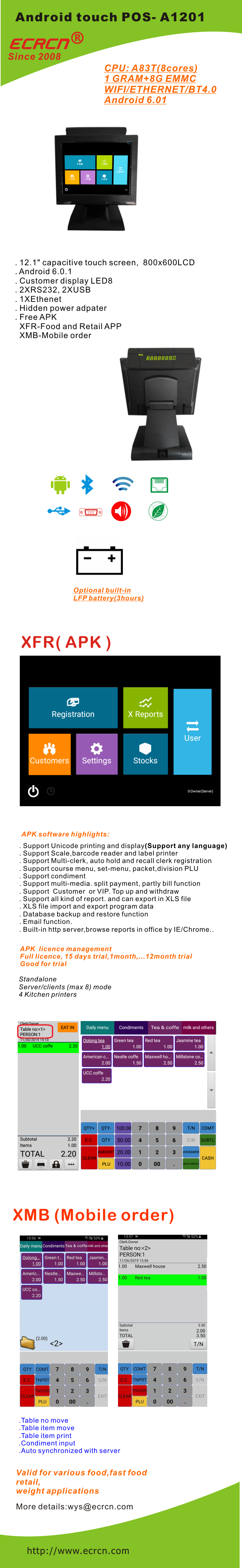

12inch Android touch POS with customer display
Price: 0.00
Date: 2017-05-18
Hit: 932

Content


TS1201 touch screen Android POS, built in Dual core ARM-CORTEX A7 CPU. 4G EMMC flash, 1G DDR3 RAM.
Android 4.22 OS.  TS1512 APK preinstalled.
12.1" TFT LCD with 1024x768. 4wire resistance touch screen.
3*USB host for USB printer, USB scanner, or USB disk
2*RS232 for RS232 device, such as RS232 printer or scale.
1*RJ11 for cash drawer
1*RJ45 for Ethernet
Built-in WIFI.
Built-in Customer display support(optional)
Built-in battery for RTC


TS1201 Hardware specifications
Display
Clerk 800X600 12.1"TFT LCD
Rear LED8
Cash Drawer
RJ11 Direct driving. 12VDC
Main board
CPU ARM cortex-A7 dual core
RTC DS1302
Flash Memory 4G EMMC
RAM 1G DDR3
Interface
Interface 2RS232,3USB,1ETHENET
Capability PC, scanner, scale, kitchen printer
WIFI 802.11b/g/n Support
Power supply
Power supply DC12V/4A adaptor built in
Rate AC85~245,50~60HZ
Power Approx. 36W
Temperature and humidity
Operation 0-50 ºC
Storage -40~60ºC
Humidity 20-90% (Relative)
Package
package 400x360x350mm carton box
Shock 1m drop on concrete surface
MTBF and standard
MTBF MTBF>5000hours
EMC Custom


TS1200 APK secifications
Capability
Clerk 99
Department 99
PLU 99999
Table no No limit
VIP/Debit customer No limit
Transaction log No limit
Amount decimals 0/2/3
Quantity decimals 0/1/2/3
% 3 item/subtotal
(+) 1 item/subtotal
(-) 1 item/subtotal
Received on account 1
Paid out 1
Kitchen messages No limit
Payments 9
TAX 5 percentage tax
VAT 6 VATs
Registration
Receipt Can print QR barcode. (sales item included)
PLU sale support
VIP/Debit customer sale Support
Error correct Support
Return merchandise support
Table no operation support
payments Cash or multiple media
Settings
All kinds of settings All necessary settings
Label settings Support for driving label(barcode) printer
Application Food/Fast food/Retail/drinking
Soft keypad Can be redefine
UI Dept, PLU show order, color can be adjusted
Reports
Full terminal report Support
Traditional report Support
Prompter report Summary and details report
Bill review Support
Bill modify Support
Stock
Stock report Support
Safe stock report Support
Stock in/out/adjust Support
Stock movement report Support
VIP/debit customer
Debit/deposit Support
Purchase list report Support
Accounts movement rpt Support
Sales details report Support
Bill printer
USB58/80 Support (store logo print)
RS232 58/80 Support
Ethernet 80 Support
Ticket mode Support
Auto copy receipt Support
Kitchen printer
RS232 58/80 Support
Ethernet 80 Support
Scale
RS232 type Support
External customer display
LED8 Support
VFD220 Support
Work group
LAN WIFI or Ethernet
Download setting(Client) Support
Send sales data(Client) Support
Share kitchen printer Support
Accumulate all for report Support
Language support
CN/EN/BIG5 Default support
Other language Support.

  APK can be customization!Have  multiple applicable occasions optional:Food,Scale,Label,Retail,Milk tea,Cashing Scale,etc.
