Touch ECR/POS



Touch POS TS1550

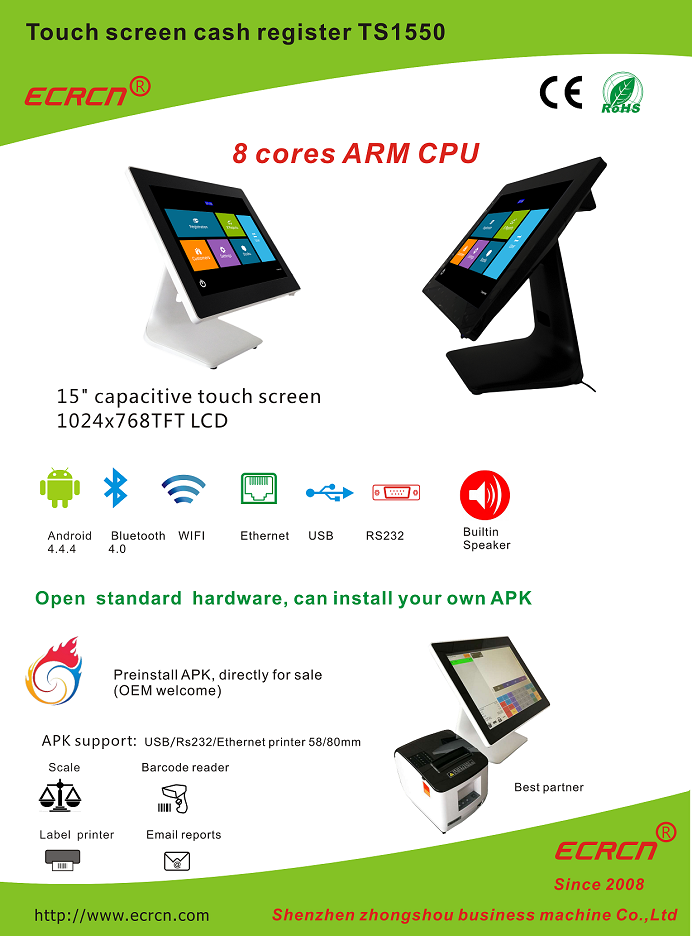

The TS1550 POS is a cost-effective touch screen terminal ideal for retail or hospitality.Simple design, built-interface, highly reliable.
Price: 0.00
Date: 2017-08-08
Hit: 1049

Content


 The TS1550 POS is a cost-effective touch screen terminal ideal for retail or hospitality.

Built in Octopus A83T, Cortex A7 2.0 GHz CPU. 8G EMMC flash, 1G DDR3 RAM.

²  Android 4.4 OS.  TS1550 APK preinstalled.

²  15” TFT LCD with 1024x768, 5wire capacitive touch screen.

²  2*USB host for USB printer, USB scanner, or USB disk

²  2*RS232 for RS232 device, such as RS232 printer or scale.

²  1*RJ45 for Ethernet, Built-in WIFI.

²  Built-in Customer display support

²  Simple design, built-interface, highly reliable



TS1550 Hardware specifications

Display

Clerk

1024X768 resolution 15”TFT LCD

Rear

VFD Display PD220

Main board

CPU

Octopus A83T,Cortex A7 2.0 GHz

GPU

PowerVR SGX544

Flash Memory

EMMC  8GB/16G/32G(8GB default

RAM

DDR3 1G OR 2G

Interface

Serial port

2*RS232

USB

2*USB

LAN

 1 RJ45 Internet port

Audio

1 port

Cash drawer

1*RJ11

Network

WIFI

802.11b/g/n Support

Bluetooth

Bluetooth 4.0

Power supply

Power supply

DC12V/4A adaptor

Rate

AC85~245,50~60HZ

Power

Approx. 36W

Temperature and humidity

Operation

0-50

Storage

-40~60

Humidity

20-90% (Relative)

Package

package

42x27x40cm

NW.

4kg

GW.

5.5kg

MTBF and standard

MTBF

MTBF>5000hours

EMC

Custom




TS1550 APK specifications

Support third party Android POS APK.

APK can be customization. Have multiple applicable occasions optional: Food, Scale, Label, Retail, Milk tea, Cashing Scale, etc.
